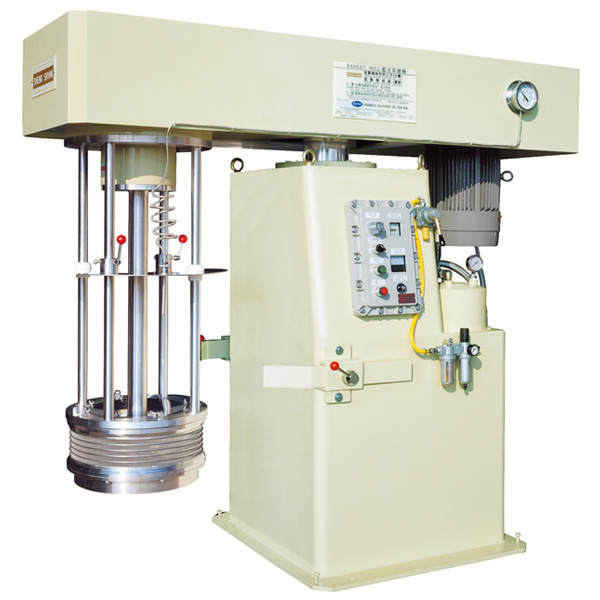

SB-20 、SB-30 Basket Bead (Sand) Mill
Number:
Features:
1.Function: Basket Bead (Sand) Mill is easy to operate, convenient for color change and suitable for dispersion of a small amount of material or of several different materials. 2.Operation method: Mixing, dispersion and proportioning are allowed to be carried out in advance in the same trough, saving the trouble for other pipes, pumps, etc., improving the working efficiency greatly. 3.Extent of separation: This machine allows finer pulverization of the product, enhancing brightness of the color. 4.Yield: This machine generates a yield of 96% or more. 5.Cleaning method: To achieve thorough cleaning, just pour detergent into the through for soaking and run the machine at a low rpm for cleaning.



Item / Model
Unit
SB-20
SB-30
 Loading capacity
l
200-400
300-500
 Motor
HP/KW
20/15
30/22.5
 Weight
kgs
1600
1750

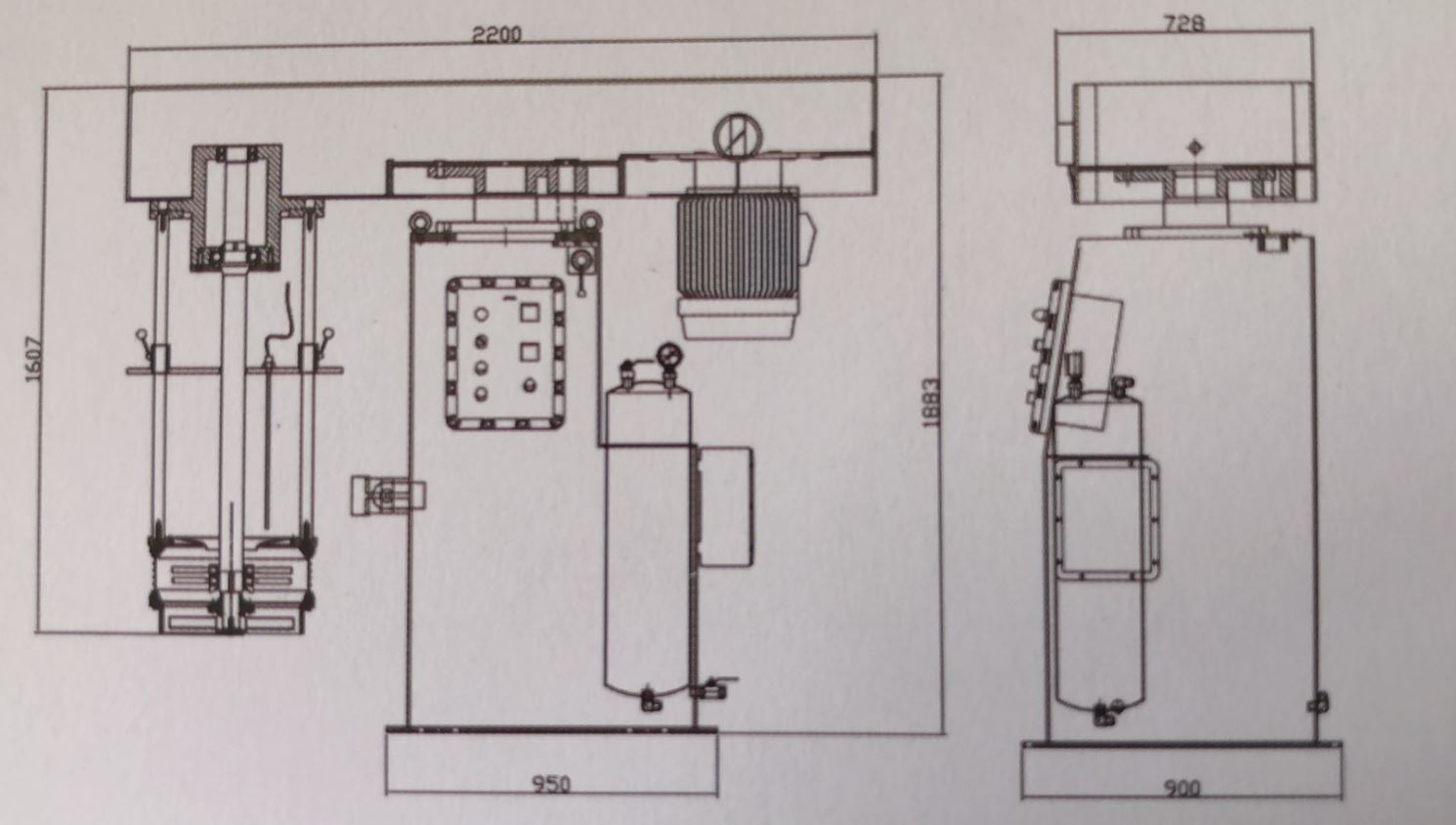

 Length
mm
2500
2650
 Width
mm
1100
1100
 Height
mm
2200
2200
